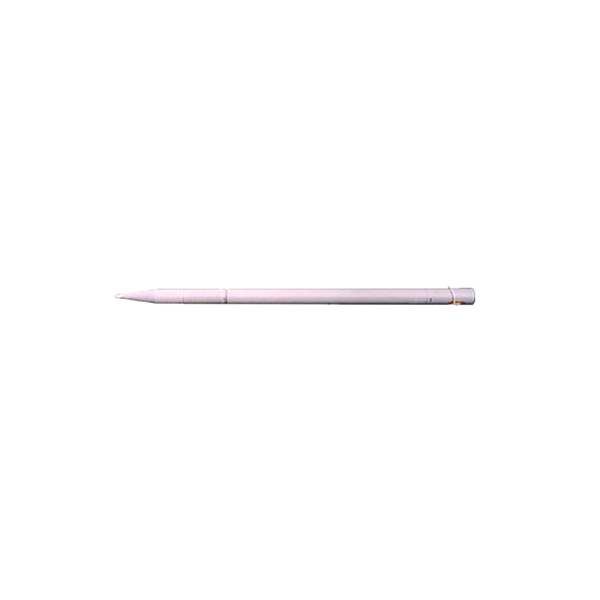

80 mm S-8KO unguided aircraft rocket with anti-tank high-explosive fragmentation warhead (HEAT/HEFRAG)


MAIN TECHNICAL PARAMETERS
Caliber (mm): 80
Launcher Pods type: B-8M1 and B-8V20
Warhead type: Anti-tank and anti-manpower (personnel) HEAT/HEFRAG
Range of fire, (m): 1 300 ÷ 4 000
Length of rocket, (mm): 1 570
Weight of rocket (with fuze), (kg): 11.3
Weight of warhead (with fuze), (kg): 3.6
Weight of bursting charge, (kg): 0.9
Armour penetration, (mm): 400
Average muzzle velocity, (m/s): 654
Fuze type (pepiezoelectric, percussion-instantaneous and inertial, with delayed arming and self-destruction): V-5KP1
Delayed arming, (s): 1.1 ÷ 1.7
Operational temperature range, ( °C): from minus 60 to + 60
Shelf life (if stored in standard packing of the producer in storehouse conditions), years: 15

PACKING
4 (four) rockets in a wooden case for transportation: 4 (four) rockets in a wooden case
Totally: 4 (four) rockets in 1 (one) wooden box

Wooden case dimensions:
Overall, (mm): 1 795 x 330 x 350
Gross weight, (kg): 75
Case volume, (m3): 0.207
Class of explosion hazard: UN 0180, 1.1F

Note: The manufacturer can change the packing
